Glass bottle rinsing machine equipment

FOB Reference Price:Get Latest Price
US $10,000-48,000 / Sets | 1 Set/Sets bottle rinsing machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Washer
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Rachel
Model Number:
LXP-60 bottle rinsing machine
Voltage:
220/380V
Power(W):
4.5kw
Weight:
3000kgs
Dimension(L*W*H):
L4200*W400*H2100
Processing Types:
glass bottle
Certification:
CE
Warranty:
one year
After-sales Service Provided:
Overseas third-party support available
material:
stainless steel
Capacity:
5000-9000bph
Bottle outside diameter:
56-64mm
Botthe height:
140-220mm
Cleaning type:
Immersion/Soak
Cleaning preocess:
Alkaline cleaning
Feature:
Sudsing/Foaming
Extract rate:
0.3%
machine name:
Glass bottle rinsing machine equipment
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard ocean shipping packing for glass bottle inside rinsing machine
Port
Shanghai port
Lead Time :
30days
Glass bottle rinsing machine equipment

Product Description

  Principal features

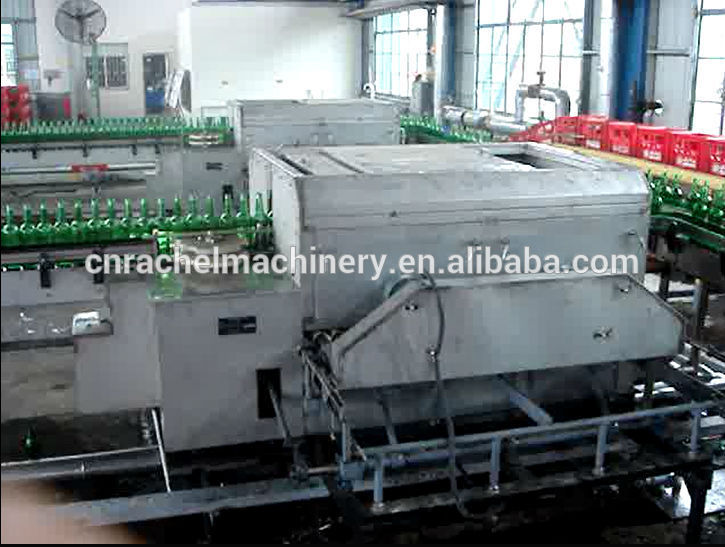

The machine contains the inner layer washing machine , the outside remove labeling machine , and the soaking machine etc . And we could dispose soaking groove and electric control system , with the characters of high efficiency of washing bottle , low bottle –broken , rate ,saving water and electricity .
Principal parameter
Bottle specification
Bottle outside diameter
56-64mm
Bottle height
140-220mm
Produciton capability

3000-4000 b/h
Lnner layer washing machine
Main motor power
1.1kw
Inside washing motor
0.55kw
Inside washing motor
505r/min
Pressure of water supplying
0.3-0.4Mpa
Bottle feeding speed
7.24m/min
Driver plate speed
7.28r/min
Outer size
1750×1320×1320mm
Weight
1100kg
Outside remove labeling machine
Orbit motor
0.75kw
Orbit speed
11.13r/min
Outside washing motor
0.75kw
Water pump motor
0.37kw
Water consumption
2.8m3/h
Outer size
2900×800×1350mm
Weight
600kg
Steeper
Liquid temperatrue
45-65oC
Solution concentration
1.4%
Outer size
2400×2650×2400mm
Weight
450kg









Packaging & Shipping

  The bottle rinsing machine packed by standard exporting package.



Our Services

1) The machines’ quality that we sold will be guaranteed for 1 year.

2) We will give you long time technology supply.

3) We can dispatch our engineer to you for installing and debugging machines. Engineer’s round-trip tickets, accommodation, and your side travelling fee will be charged by you. Engineer’s salary will be USD50.00/day/person.

4) We can also supply you mounting process, so your engineers can fit and debug machines by themselves.





Company Information



















We supplied the beer bottling machine/beer bottling equipment/beer bottling line to all kinds of beer brewery factory!
