Pure Water Bottling Machine

FOB Reference Price:Get Latest Price
US $15,000-18,000 / Set | 1 Set/Sets Pure Water Bottling Machine (Min. Order)
Supply Ability:
10 Set/Sets per Month Pure Water Bottling Machine
Port:
Shanghai Port
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage, Chemical, Food, Medical
Packaging Type:
Bottles
Packaging Material:
Glass
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
1.5KW
Power:
220V/380V
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Rachel
Model Number:
CGF14-12-6
Dimension(L*W*H):
1600*1400*2350mm
Weight:
2000KG
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Machine Name:
Pure Water Bottling Machine
Model:
CGF14-12-6
Cpacity:
3000/500ml
Bottle shape:
round or square
Bottle Diameter:
50-110mm
Height:
150-340mm
Volume:
330ml-2000ml
Cap:
PE srew cap
Overall size(mm):
1600*1400*2350mm
Filling precision:
0.15-0.35 (Mpa)
Packaging & Delivery
Packaging Details
Wooden case for Pure Water Bottling Machine
Delivery Time
60Days

Pure Water Bottling Machine

Product Description

  The Pure Water Bottling Machine is mainly used in the beverage filling operations.The three functions of bottle rinsing, filling and capping are composed in one body of the machine.The whole process is automatic.The machine is used in filling mineral water and purified water in bottles made of polyester and plastics.The machine can also be used in hot filling if being installed with temperature controlling device.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.There the output and benefit of the machine is higher than the machines of the same specifications.The advanced omron programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, on the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.It is the ideal first-choice equipment of beverage manufacturers.




Technique parameter:

Model:CGF14-12-4CGF16-16-6CGF18-18-6CGF24-24-8CGF32-32-10CGF40-40-12Cgf50-50-12Cgf60-60-15
Capacity:500ml3000500080001200015000180002100024000
Bottle shape:Roud or square
Pet bottle:(mm)(bottle diameter):Φ50-.Φ110mm   (height):150-340mm
Cap:PE srew cap
Filling precision:≤±5mm
Filling pressure:(MPa)0.15-0.35
Motor power:(kw)1.522.2347.59.512
Overall size:(mm)1600*1400
*2350
1800*1600
*2350
2450*1800
*2350
2780*2200
*2350
3600*2650
*2350
3800*2950
*2400
5200*4500*29006500*4500*3400
Weight:(kg)20002500300045005500650078009800

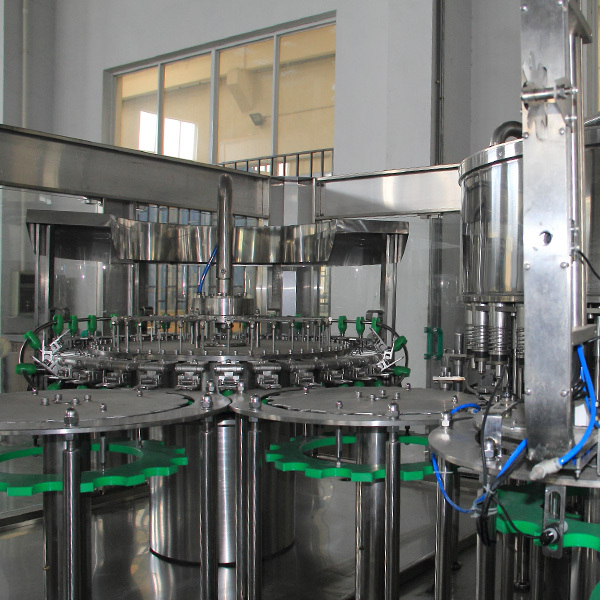

  Rinsing Part

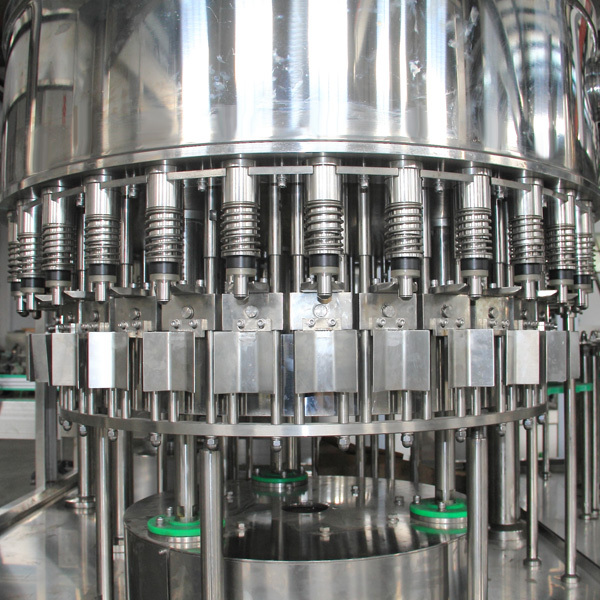

Filling Part

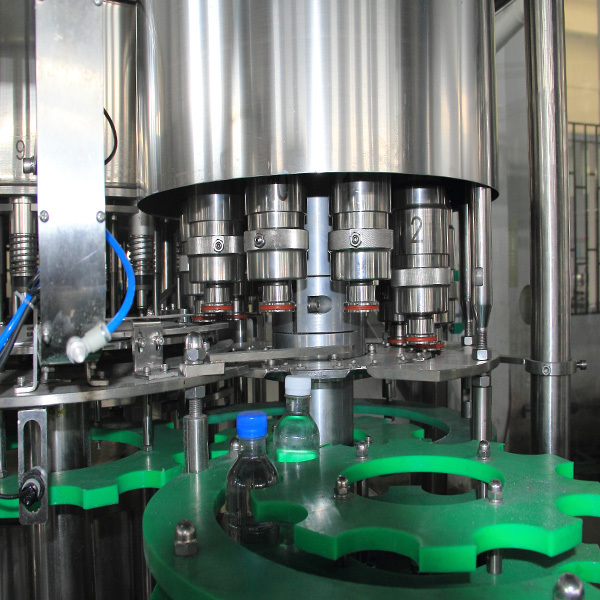

Capping Part







Packaging & Shipping

  Wooden Case



Carefully Packing



Our Services



1) The machines’ quality that we sold will be guaranteed for 1 year.

2) We will give you long time technology supply.

3) We can dispatch our engineer to you for installing and debugging machines. Engineer’s round-trip tickets, accommodation, and your side travelling fee will be charged by you. Engineer’s salary will be USD80.00/day/person.

4) We can also supply you mounting process, so your engineers can fit and debug machines by themselves.



Company Information

  Company View

Zhangjiagang Rachel Machine Co.,Ltd. located in the beautiful coastal city of Zhangjiagang City, east of Shanghai, Nanjing marina north, south Jiangsu. The company set 90 years in the last century, the development, production, sales and after-sales service in one of the trade and production units.

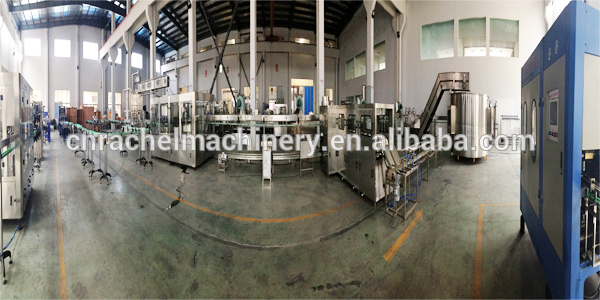

Working Area
